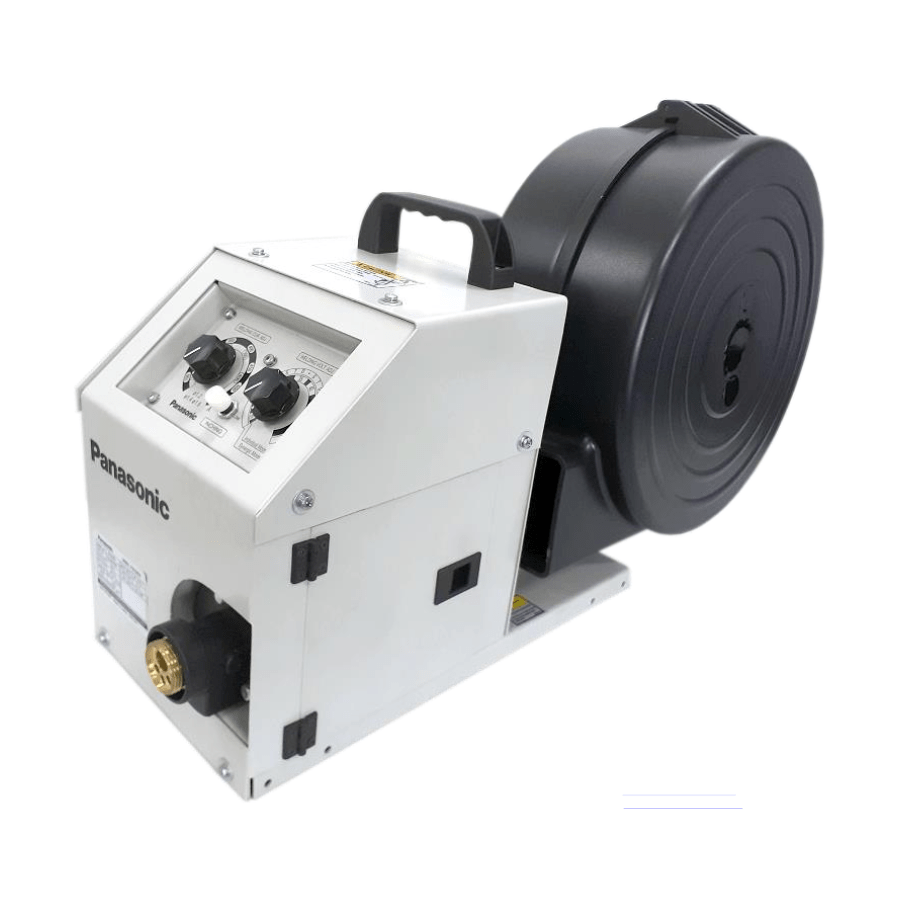

Panasonic; Accessories; Enclosed Wire Feeder
Roll over image to zoom in Click on image to zoom
Panasonic; Accessories; Enclosed Wire Feeder

Panasonic; Accessories; Enclosed Wire Feeder

Description

Important Features

Features :

  • Dust preventive and Rain water preventive(IP23)
  • Operator Safety
  • Euro/Pana Connector
  • Brake Spool Shaft
  • Outdoor and Indoor performance
Technical specification
Rated welding current 500 A
Applicable wire Diameter 1.2 mm, 1.6 mm
Material Solid wire, Flux cored wire for mild steel
  Applicable spool Shaft diameter 50 mm
Outer diameter Max. 300 mm
Width Max. 105 mm
Mass Max. 20 Kg
Applicable gas Kinds CO2, CO2+Ar
Pressure Max. 0.4 Mpa
Cable length 1.8 metre
Mass 10.5 Kg
Wire feed speed 5- 18 metre/min
Duty cycle 60%
Applicable welding power source YD-500RX1
Ordering code YW-50KB3DBE
