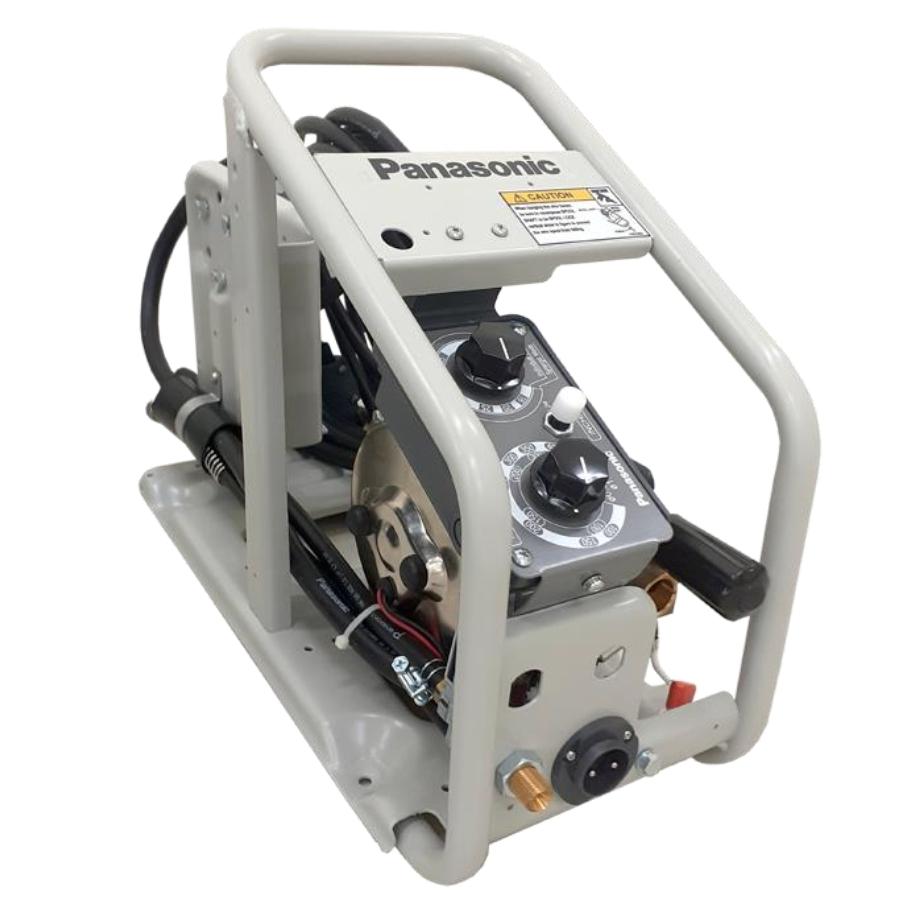

Panasonic; Accessories; High Speed Wire Feeder
Roll over image to zoom in Click on image to zoom
Panasonic; Accessories; High Speed Wire Feeder

Panasonic; Accessories; High Speed Wire Feeder

Description

400 Amp@60% duty cycle , Max wire feed speed

24 m/min with good welding performance (MIG/MAG welding)

Technical specification
Rated welding current 400 A
Applicable wire Diameter 0.8 mm, 1.2 mm
Material Solid wire, Flux cored wire for mild steel
    Applicable spool Shaft diameter 50 mm
Outer diameter Max. 300 mm
Width Max. 105 mm
Mass Max. 20 Kg
Applicable gas Kinds CO2, CO2+Ar
Pressure Max. 0.4 Mpa
Cable length 1.8 metre (Gas hose 4.8 metre)
Mass 10.5 Kg
Wire feed speed 5- 24 metre/min
Duty cycle 60%
Applicable welding power source YD-400RX1
Ordering code YW-40KB3DB0
