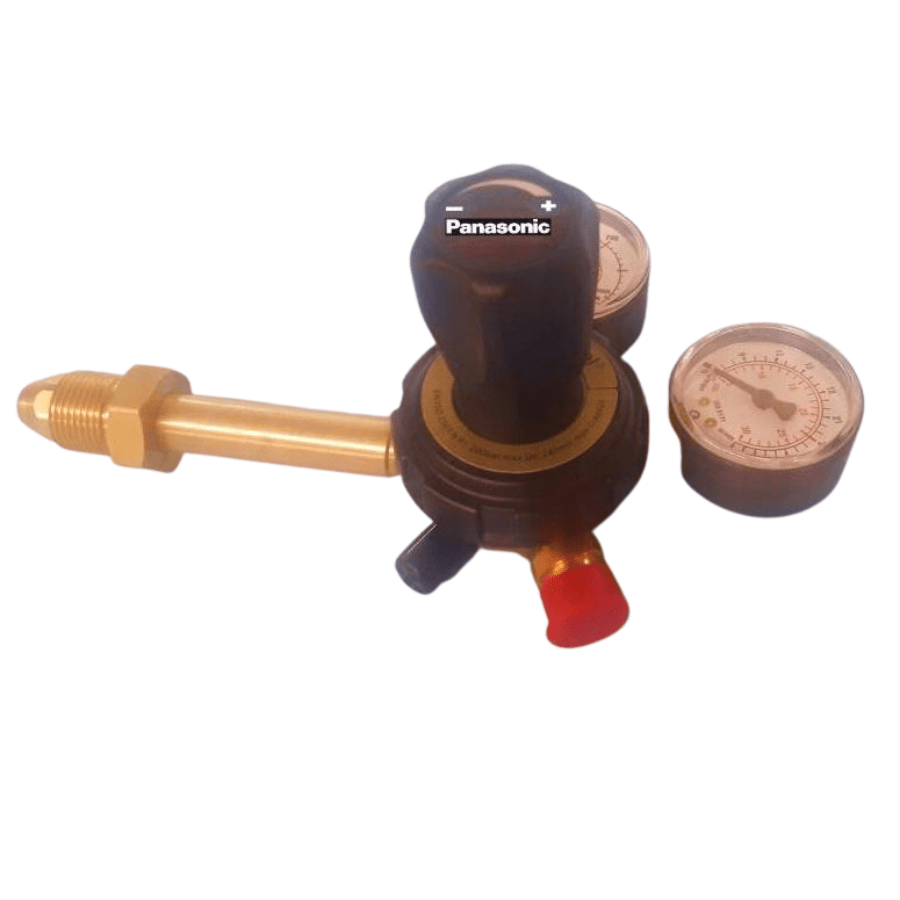

Panasonic; Accessories; Single Stage Pressure Regulators
Roll over image to zoom in Click on image to zoom
Panasonic; Accessories; Single Stage Pressure Regulators

Panasonic; Accessories; Single Stage Pressure Regulators

Description

Important Features

Robust and Durable 2-gauge CO2 & Argon Regulators

Regulator Conforming to

  • EN IS0 2503

Gauge design conforming to

ISO 5171

Technical Specification
Parameter CO2 Regulator Argon Regulator
Item code YX-24AS1DAA YX-24AT1DAA
Mounting Cylinder mounted
Gas service CO2 Argon, Ar-CO2 mix
Stages Single
Inlet Connection 0.860x1/14"Female G5/8"RH Male
Max inlet pressure 200 bar*
Nominal flowrate 3-30 LPM
ISO 2503 Class N10
Pressure Gauges 2 gauges-50 mm
Diaphragm 55 mm dia fabric-reinforced EPDM rubber
Safety valve Non-adjustable, plastic housing
Body Forged brass, Chemically stabilized
Bonnet Die cast zinc alloy
Inlet stem & Nut Brass, Conforming to BS-341 Standard
Weight(approx.) 1.15 Kg
