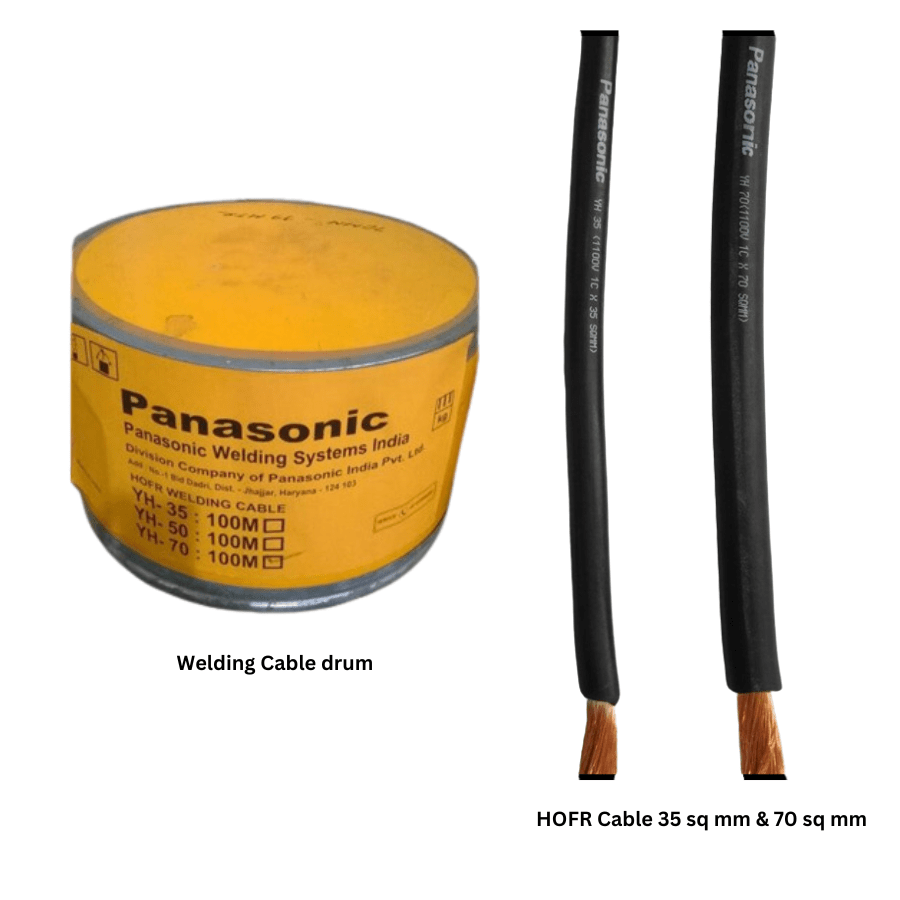

Panasonic; Accessories; Welding Cables
Roll over image to zoom in Click on image to zoom
Panasonic; Accessories; Welding Cables

Panasonic; Accessories; Welding Cables

Description

Important Features

Copper Conductor HOFR (Heat Oil Fire Retardant ) & TRS (Tough Rubber Sheathed)

Panasonic Welding Copper conductor cables are best in class adhering to International Standard for Copper conductor as per IS:8130-84 & Elastomeric rubber insulation as per IS 6380-84 ,Type IE1 (TRS Cable) or Type IE3 (HOFR Cable)

Copper Conductor HOFR Welding Cable

Copper Conductor HOFR Current carrying capacity (Amps) conforming to IS:9857/90
Cross Section area (sq mm) No. of 0.3 mm dia strands Sheath thickness (mm) Approx. overall diameter (mm) Max. Resistance @20 deg C (ohm/km)   100%   85%   60%   30%
50 702 2.2 15.3 0.386 280 305 360 510
70 999 2.4 17.3 0.272 350 385 455 645
95 1332 2.6 20.5 0.206 425 460 550 775

Copper Conductor TRS Welding Cable

Copper Conductor TRS Current carrying capacity (Amps) conforming to IS:9857/90
Cross Section area (sq mm) No. of 0.3 mm dia strands Sheath thickness (mm) Approx. overall diameter (mm) Max. Resistance @20 deg C (ohm/km)   100%   85%   60%   30%
35 497 2.0 13.7 0.554 155 170 200 285
50 702 2.2 15.3 0.386 200 215 255 360
70 999 2.4 17.3 0.272 250 270 320 455
95 1332 2.6 20.5 0.206 300 345 385 550
