Description

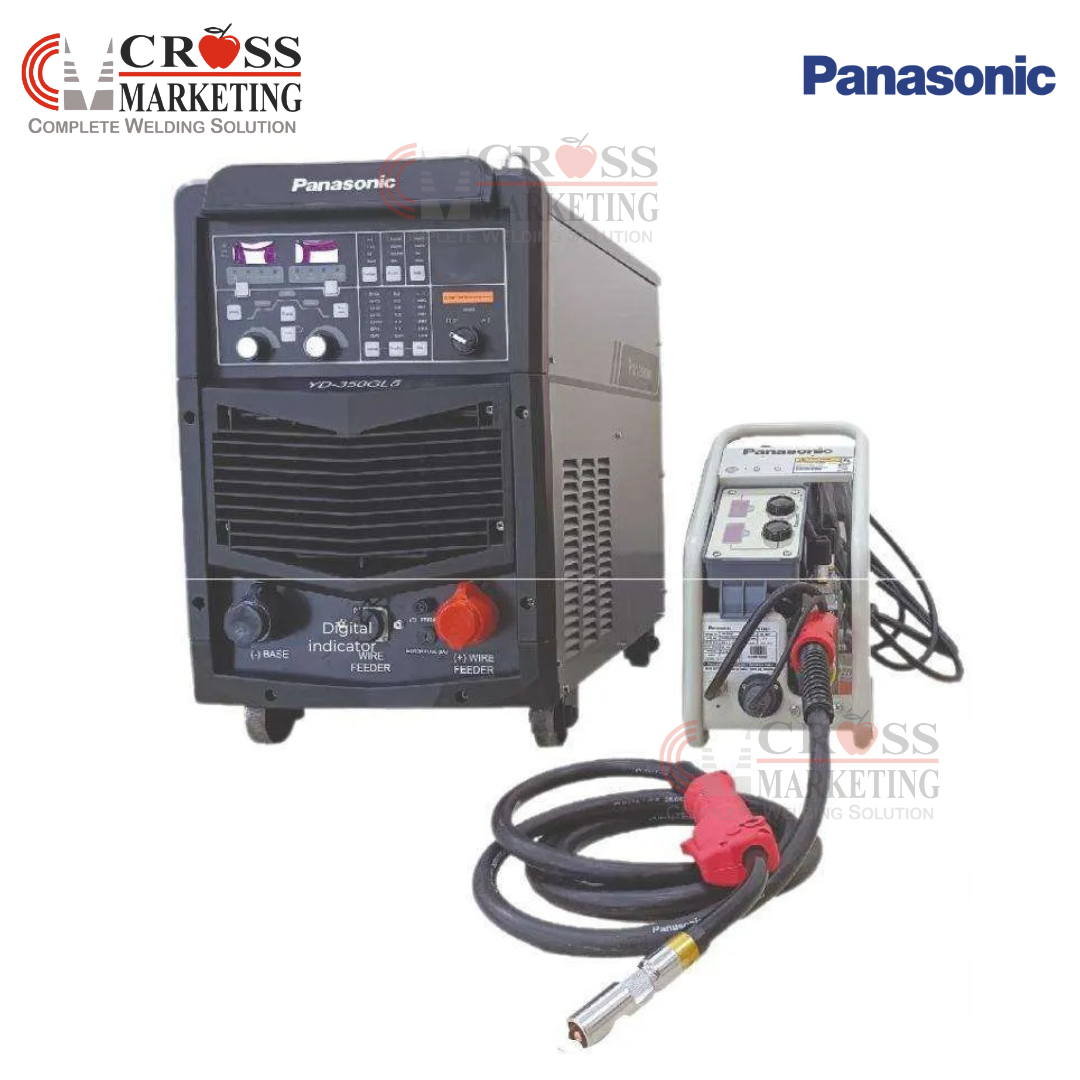

Full Digital Controlled Pulse MIG/MAG
Welding Machine
| Specifications table | ||
| Power Source | ||
| Item | Unit | YD-350GL5 |
| Control method | - | Digital IGBT control |
| Rated input/No. of phases | - | 3-phase AC 415 V , -27% , +10% (304 V - 456 V) |
| Input power frequency | Hz | 50/60 |
| Rated input capacity | KVA/KW | 17.6/13.5 |
| Output characteristics | - | CV (Constant voltage characteristics) |
| Rated output current | A | Pulse OFF :DC 350 Pulse ON :DC 350 |
| Rated output voltage | V | 31.5 |
| Rated duty cycle | % | 60 |
| Rated output no-load voltage | V | DC 80 |
| Output current range | A | Pulse OFF: DC 40-430 Pulse ON : DC 40-350 |
| Output voltage range | V | Pulse OFF: 16-35.5 Pulse ON: 16-31.5 |
| Welding method | - | Individual/Unitary |
| Enclosure protection class | - | IP23S |
| Insulation class | - | Main transformer 155 deg C (Inductor 200 deg C) |
| EMC classification | - | A Grade |
| Cooling method | - | Forced air cooling |
| Application welding wire type | - | Solid/Flux cored |
| Applicable welding wire diameter | mm | Solid core 0.8/1.0/1.2/1.4/1.6 |
| mm | Flux cored mild steel 1.2/1.4/1.6 | |
| mm | Flux cored stainless steel 1.2 | |
| Welding wire material | - | Mild steel, Mild steel flux cored, Stainless steel, Stainless steel flux cored |
| Memory | - | 100 channels can be called , welding parameters recordable |
| Sequence | ;- | Welding/welding-crater/initial-welding- crater/spot welding |
| Shielding gas | - | CO2 welding CO2:100% MAG welding Ar:80%, CO2:20% MIG welding Ar:98%, O2:2% |
| Gas check time | - | 60 sec (longest gas check time) |
| Pre-flow time | - | 0 sec- 5 sec continuous adjustment (0.1 sec incremental) |
| After-flow time | 0 sec- 5 sec continuous adjustment (0.1 sec incremental) | |
| Overall dimensions | mm | 682x380x612 (LWH) |
| Mass | Kg | 68 |
| Ordering code | - | YD-350GL5DJE |
| Wire feeder | ||
| Item | Unit | YW-50DG |
| Rated welding current | A | 500 |
| Welding wire type | - | Mild steel solid core and flux cored wire ; stainless steel solid and flux cored welding wire |
| Wire feed speed range | - | 2.5 to 20.1 metre/min |
| Cable length | metre | 1.8 metre(Standard); 5 metre, 10 metre ,15 metre (Optional) |
| Drive method | - | 4 Roll 2 drive |
| Ordering code | - | YW-50DG1DNG |
| Welding torch | ||
| Item | Unit | YT-40CS4 |
| Rated welding current | A | 400 A@45% duty cycle (CO2) |
| 400 A@25$ duty cycle (Ar-CO2) | ||
| Applicable wire diameter | mm | 0.8,1.0,1.2 |
| Cable length | metre | 3 |
| Cooling | - | Air cooled |
| Mass (including cable) | Kg | 2.8 |
| Ordering code | - | YT-40CS4DAF |
