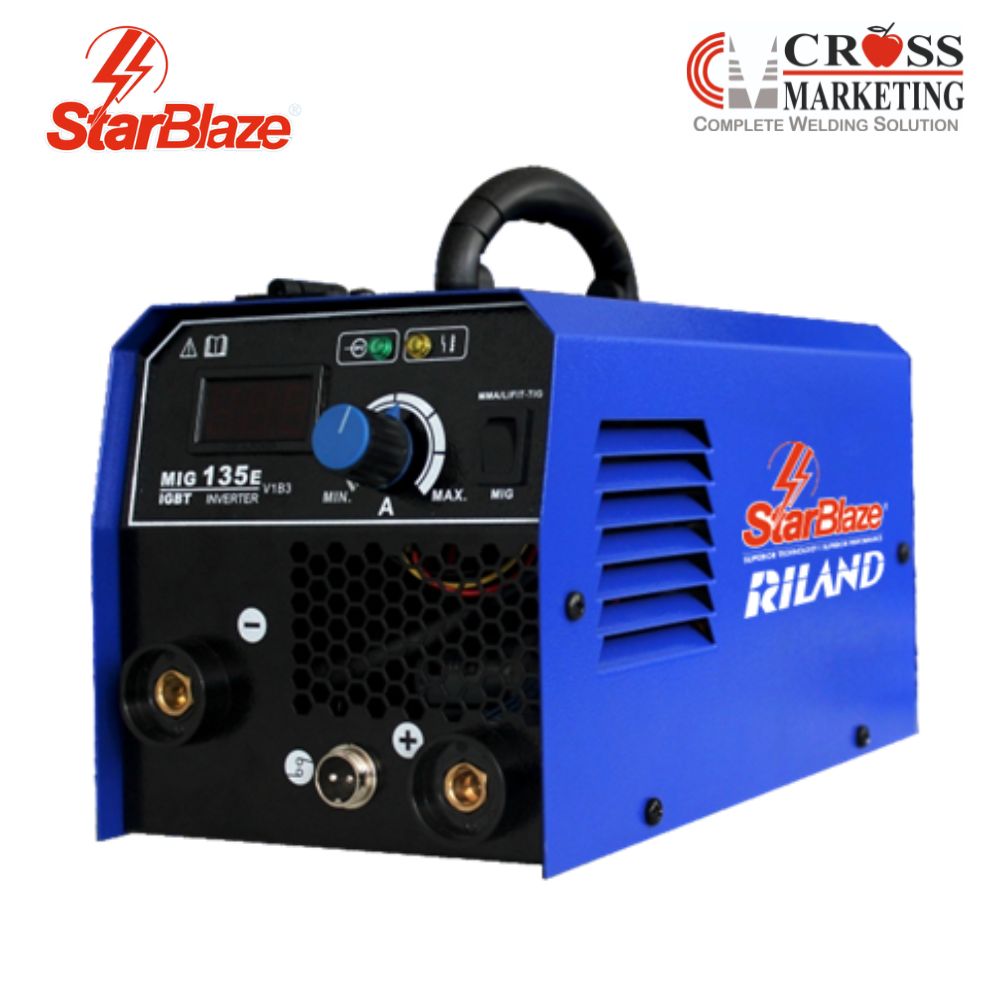

Description
-
Equipped with RILAND self-developed RICHIP chip and use the advanced IGBT inverter technology.
-
High performance in GASLESS modes.
-
Digital display and with MMA function.
-
Automatic identification of wire diameter, easy to adapt to 0.8, 0.9mm and 1.0mm (220V) wire welding.
-
Synergic control the voltage and current for easy and better welding.
-
Adapt to 1kg wire spool.
-
Wire inching function act as you press the trigger about3s under no load.
-
Fan as needed, reduce noise and dust inside the machine.
-
Compact and portable
-
Intelligent protection: over-current, over-voltage, over
|
Rates input Voltage (V) |
230*1P ± 15% |
|
Frequency (Hz) |
50/60 |
|
Rated input capacity ((KVA) |
3.1 |
|
Rated input current (A) |
13.4 |
|
Welding output voltage (V) |
55 |
|
No load loss (W) |
100 |
|
Current adjusting range (A) |
32-120 |
|
Efficiency (%) |
85% |
|
Insulation |
F |
|
Case protection degree |
IP21 |
|
Overall dimensions (mm) |
280x156x180 |
|
Weight (kg) |
3.1 |
Control Panel:-Simple and easy to operate, one rotary knob for welding current preset. Customers can easily remark the welding current, according to the display panel.
Application Specification:- Metal Fabrication, Maintenance and Repair, Auto-body, Sheet metal Processing Mild steel, alloyed steel.
Standard package includes
© 1 PC inverter power source
© 1 PC Mig Torch 2 mtr
© 1 PC 2 mtr earth clamp with cable
© 1 PC 0.8 mm Flux-cored wire, 1 Kg.
