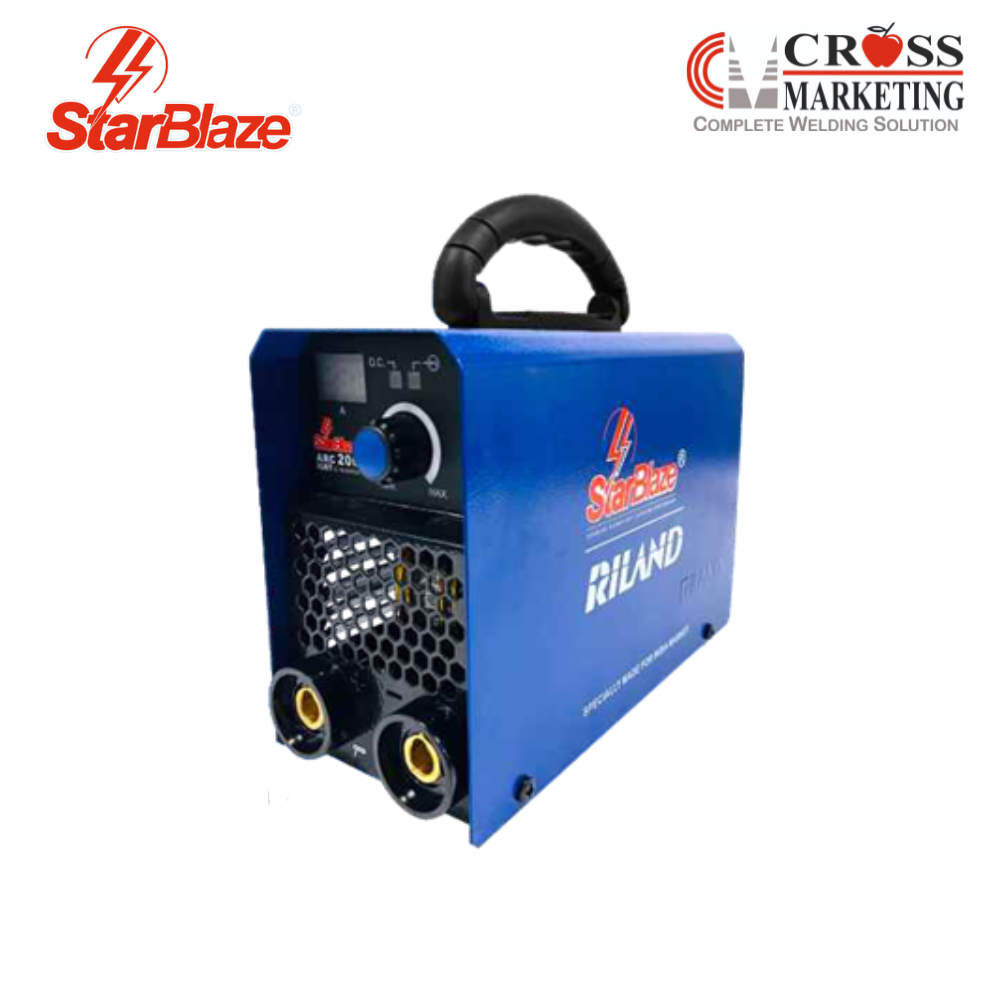

Riland StarBlaze; Inverter Arc Welding Machines; ARC 200


Description

  • Equipped with Ruiling's self-developed RICHI chip and use the latest high grade IGBT technology.

  •  Wide range input voltage: 220V±15%.

  • Intelligent protection for over-loading and over-heating.

  •  Anti-stick function built-in, preventing against over loading the unit and easing removal of the electrode.

  • Non-stop welding for 2.5mm electrode, can welding 3.2mm diameter electrode.

  • Compact and portable (2Kg)

  •  Suitable for light fabrication, maintenance, installation, etc.

ITEM

ARC 200

ARC 200

1P-220±15%

Frequency (HZ)

50/60

Rated (A) input current

26.5

Rated input power (KVA)

5.83

Output current (A)

10-200

No-load Voltage (V)

54

Insulation grade

F

Efficiency

>85%

Housing protection grade

IP21

Weight (kg)

2

Dimensions (mm)

204 x 87 x 146



Control Panel:- Simple and easy to understand front panel design, just only one knob for welding current pre-setting. Two indicators for work status display.

Base Units Include:-

  • 1 pcs inverter power source with 3 mtr input cable.

  •  2 pcs OKC Connector.

Application Specification:- Light steel structure, Machinery maintenance, Sheet metal Processing, Mild steel, Stainless steel, alloyed steel, etc.
