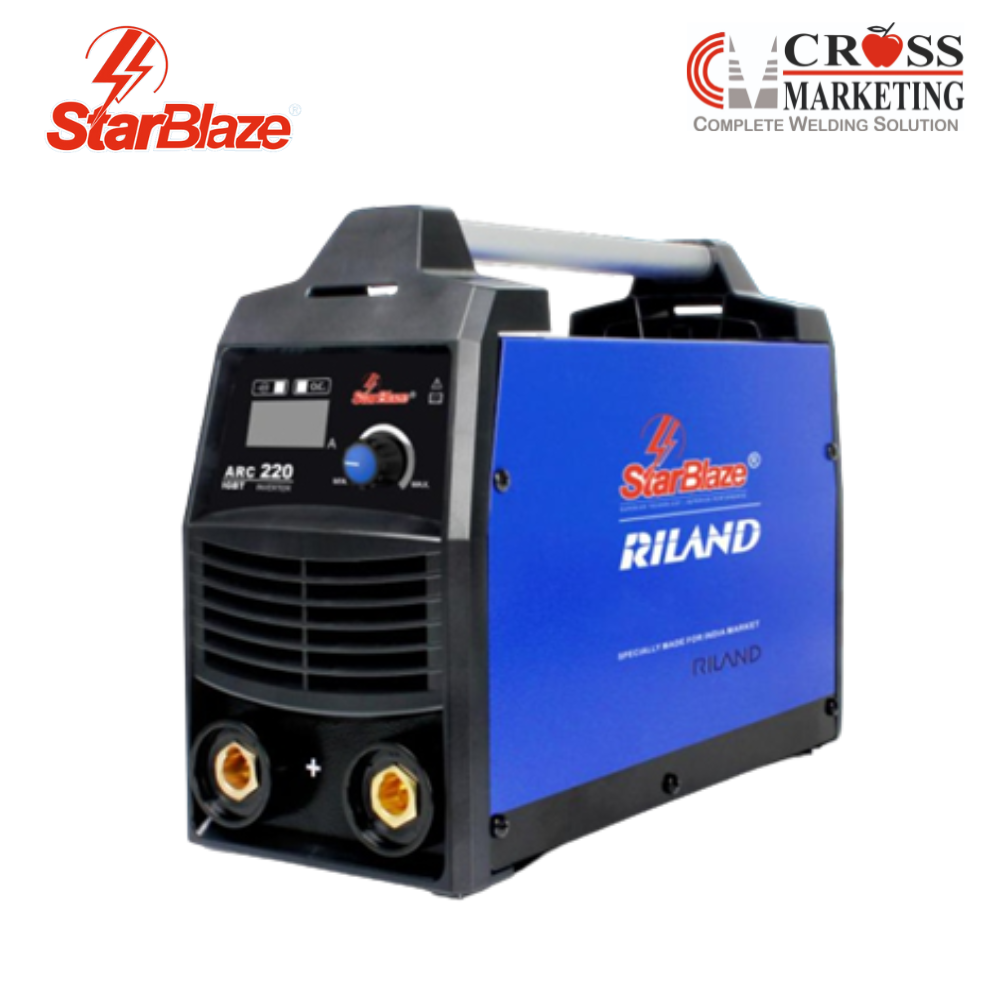

Riland StarBlaze; Inverter Arc Welding Machines; ARC 220


Description

The welding experts YOU Can trust The new generation and cost-effective ARC 220

Economical, Excellent, Affordable, Portable, Light weight

  • Equipped with RILAND self-developed RICHIP chip and use the latest high grade IGBT technology.

  • LED Display shows the welding current.

  • Adopt intelligent MCU control with high reliability, built-in power management system.

  • Built-in anti-stick feature prevents overload and enables effortless electrode removal.

  • This unit features an output reactor, enabling welding with acidic and basic electrodes.

  • Continuous welding capabilities for 2.5 mm and 3.2mm electrodes.



ITEM

ARC 220

ARC 220

1P-220±15%

Frequency (Hz)

50/60

Rated (A) input current

32.9

Rated input power (KVA)

7.24

Output current (A)

30-200

No-load Voltage (V)

58

Insulation grade

F

Efficiency

>85%

Housing protection grade

IP21

Weight (kg)

3.7

Dimensions (mm)

295 x 130 x 235



Control Panel:- It’s simple and easy to operate, one knob for welding current pre-setting. Digital display indicates preset welding current. Built-in automatic hot start and arc force function, good for many kinds of electrode welding.

Standard package includes:-

  •  1 PC inverter power source, include an 220Vinput cord with power plug.

  •  2 PC Quick plug

  •  1 PC Allen key

Application Specification:- Light steel structure, Machinery maintenance, Sheet metal Processing, Mild steel, Stainless steel, alloyed steel, etc.
