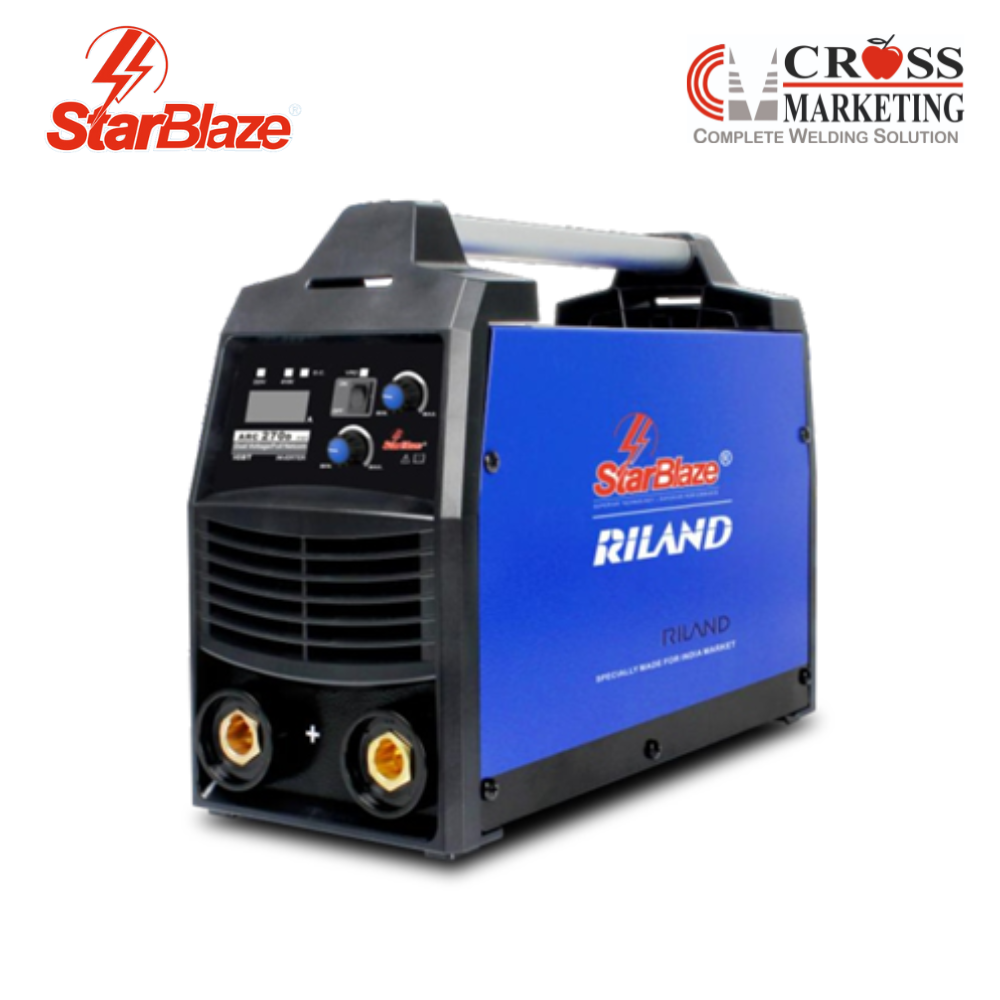

The welding experts YOU Can trust The new generation and cost-effective ARC 270D
Economical, Excellent, Affordable, Portable, Light weight
-
Equipped with RILAND self-developed RICHIP chip and use the latest high grade IGBT technology.
-
Double voltage: 220V/415V±15%.
-
LED Display shows the welding current.
-
Adopt intelligent MCU control with high reliability, built-in power management system.
-
Built -in anti- stick feature prevents overload and enables effortless electrode removal.
-
This unit features an output reactor, enabling welding with acidic and basic electrodes.
-
Continuous welding capabilities with electrodes ranging from 2.5 mm - 4.0 mm
|
ITEM |
ARC 270D |
|
|
ARC 270D |
1P-220±15%/1P415±15% |
|
|
Frequency (Hz) |
50/60 |
|
|
Rated (A) input current |
32.9 |
42 |
|
Rated input power (KVA) |
9.24 |
12.16 |
|
Output current (A) |
30-270 |
30-240 |
|
No-load Voltage (V) |
68 |
70 |
|
Insulation grade |
F |
|
|
Efficiency |
>85% |
|
|
Housing protection grade |
IP21 |
|
|
Weight (kg) |
5.5 |
|
|
Dimensions (mm) |
345 x 153 x 285 |
|
Standard package includes
1 PC inverter power source
2 PCS Quick plug
1 PC Allen key
Application Specification:- Light steel structure, Machinery maintenance, Sheet metal Processing Mild steel, Stainless steel, alloyed steel, etc.
Control Panel:- Simple and easy to understand front panel design, the bottom big knob for welding current pre-setting, the top one small knob for Arc force current adjustment.
