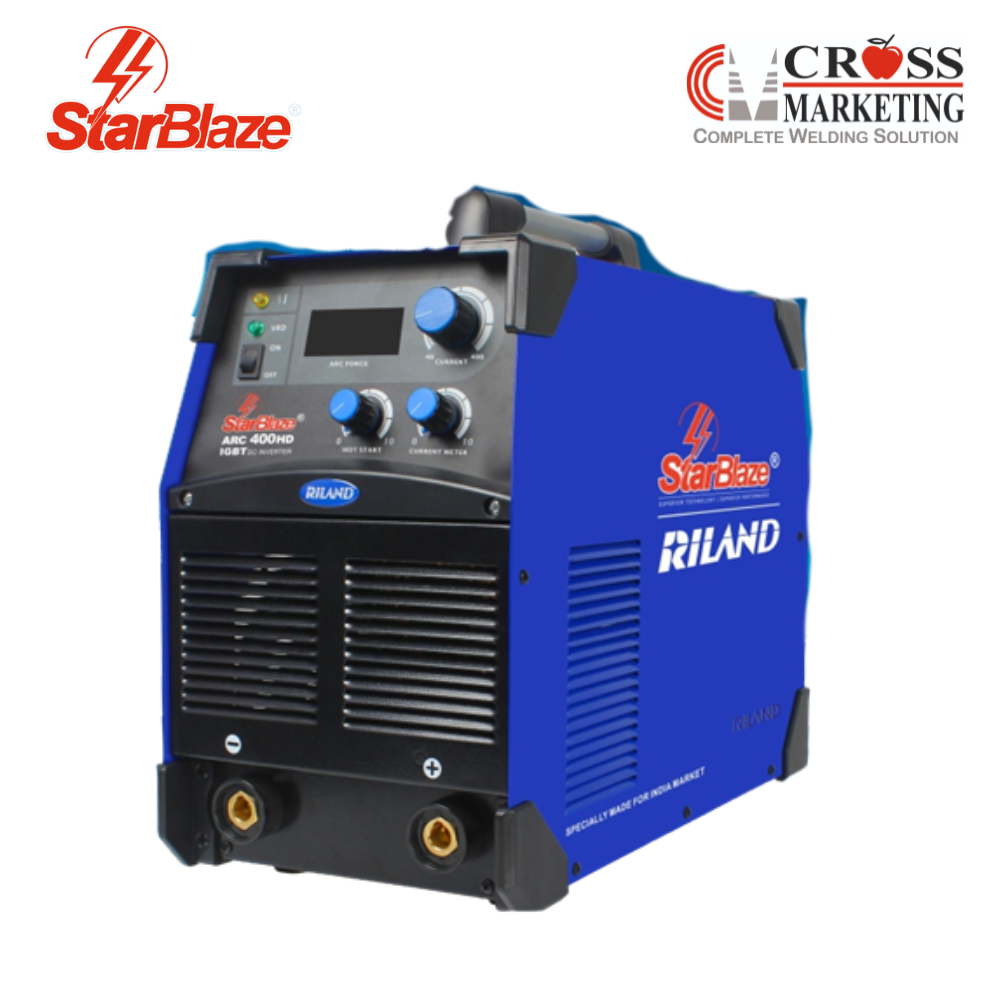

Riland StarBlaze; Inverter Arc Welding Machines; ARC 400HD


Description

The most cost-efficient Heavy Industrial ARC 400HD

Dependable, Economical, Excellent Basic Industrial Stick Welding

  •  Advanced IGBT inverter technology.

  • Wide range for input voltage: 415V±15%

  • Digital meter display preset and welding current.

  •  Dust-Free Cooling System with Upgraded Duty Cycle.

  •  ARC force and Hot start adjustable, easy arc striking.

  • VRD function, for safety of welders.

  •  Auto-Protection against over-voltage, over-current and over- heat.

  •  Generator friendly.

  • Energy Saving - Compared with the traditional machines more efficient.

ITEM

ARC 400HD

ARC 400HD

3P-415±15%

Frequency (Hz)

50/60

Rated (A) input current

25.3

Rated input power (KVA)

18.2

Output current (A)

40-400

Hot start current (A)

0-135

Arc force current (A)

0-100

Insulation Grade

H

Power factor

>0.93

Efficiency

>85%

Housing protection grade

IP21

Weight (kg)

13.5

Dimensions (mm)

482 x 241 x 381



Standard package includes

© 1 pc inverter power source

© 1 pc stick electrode holder with cable

© 1 pc earth clam with cable

Control Panel:-  Simple and easy to understand front panel design, the upper big knob for welding current pre-setting, the below two smaller knob for hot start current and Arc force current adjustment.

Application Specification:-  Steel erection, Pipe, Fabrication, Shipbuilding, Foundries, Mild steel, Stainless steel, alloyed steel, etc.
