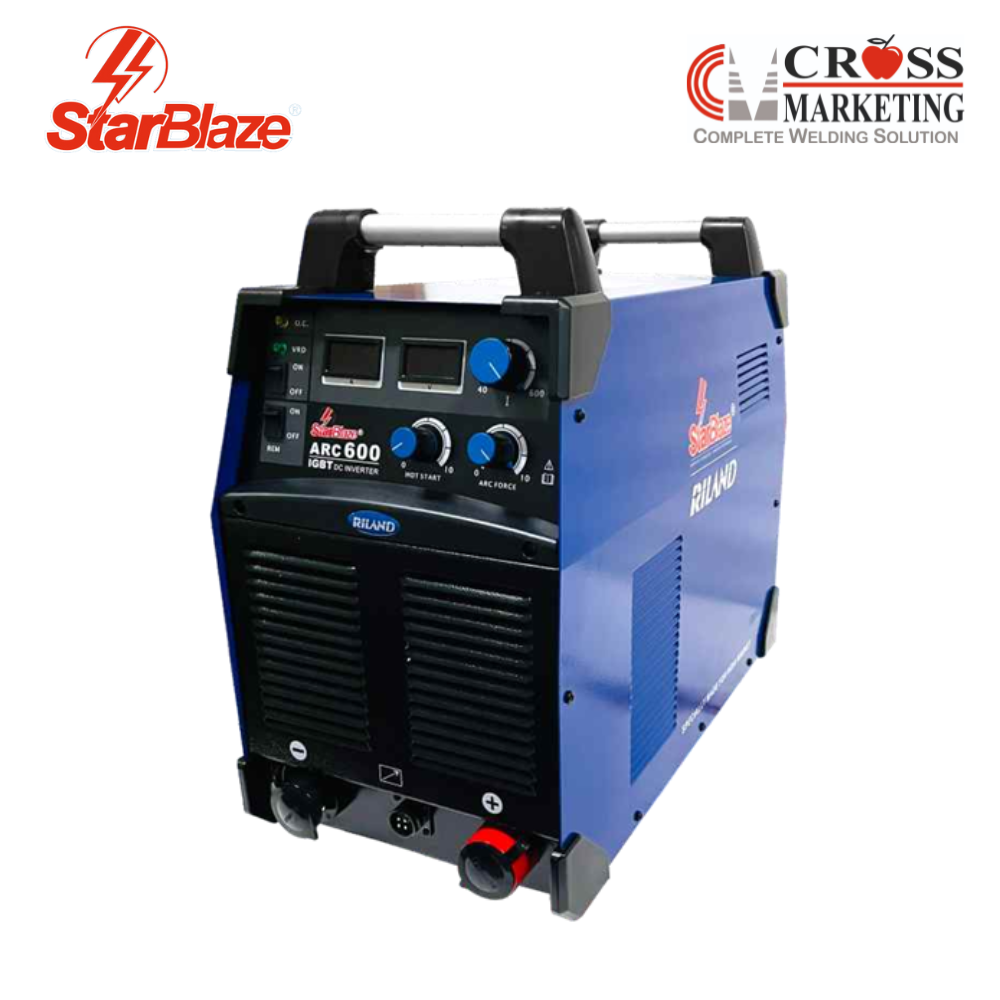

Riland StarBlaze; Inverter Arc Welding Machines; ARC 600


Description

The most cost-efficient Industrial ARC 600 MMA Welding machine Dependable, Economical, Excellent Basic Industrial Stick Welding

  •  Advanced IGBT inverter technology

  • Wide range for input voltage: 415V±15%

  • Digital meter to preset and display welding current

  • Dust-Free Cooling System with Upgraded Duty Cycle

  •  ARC force and Hot start adjustable, easy to striking the arc

  •  VRD function, for safety of welders

  •  Auto-Protection against over-voltage, over-current and over- heat

  •  In this series, each machine is fitted with 8 pcs plastic corner protectors, which can well protect the machine and make it looks more elegant

  •  Energy Saving - Compared with the traditional machines more efficient



ITEM

ARC 600

ARC 600

3P-415±15%

Frequency (HZ)

50/60

Rated (A) input current

35.3

Rated input power (KVA)

23.3

Output current (A)

45-600

Hot start current (A)

0-135

Arc force current (A)

0-100

Power factor

>0.93

Efficiency

>85%

Housing protection grade

IP21

Weight (kg)

25

Dimensions (mm)

526 x 272 x 465



Control Panel:- Simple and easy to understand front panel design, the upper big knob for welding current pre- setting, the below two smaller knobs for hot start current and Arc force current adjustment.

Application Specification:- Steel erection, Pipe, Fabrication, Shipbuilding, Foundries, Mild steel, Stainless steel, alloyed steel, fabrication etc.

Base Units Include

© 1 pcs inverter power source.
