Description

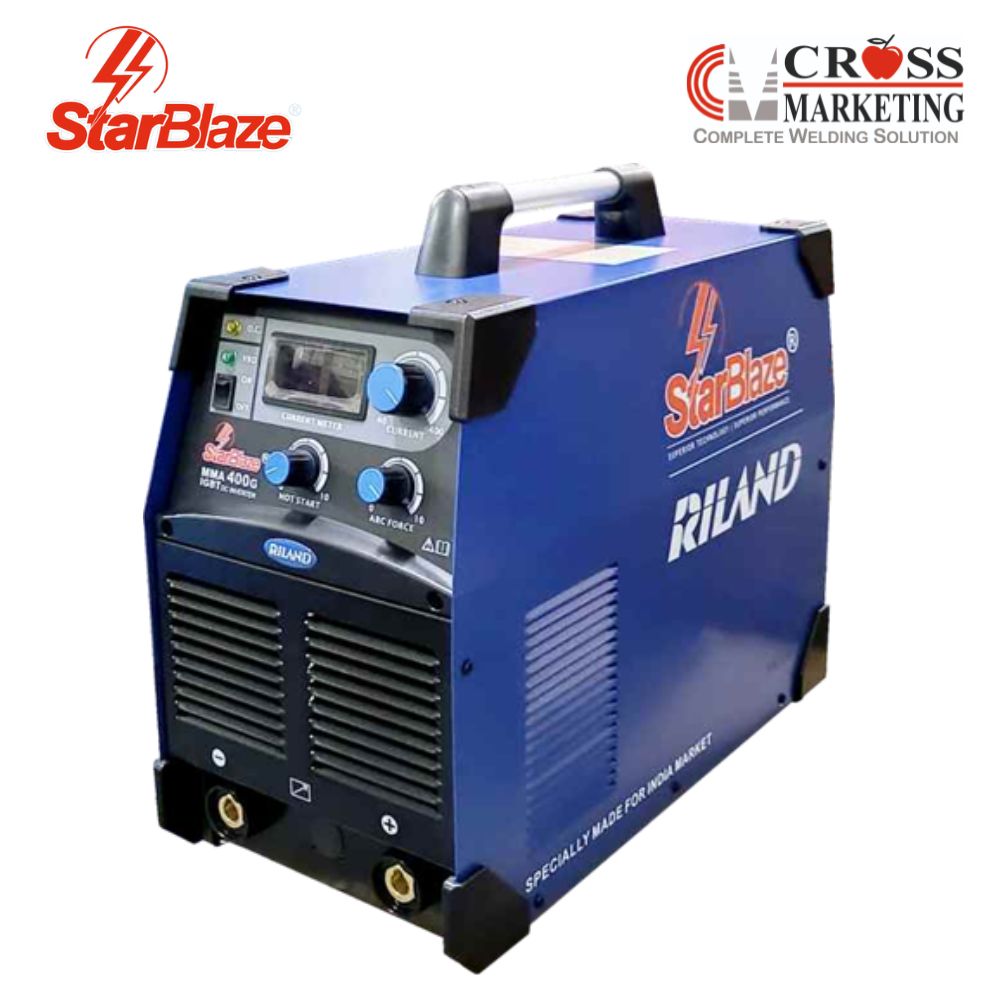

The most cost-efficient Heavy Industrial MMA 400G
Dependable, Economical, Excellent Basic Industrial Stick Welding
-
Advanced IGBT inverter technology+
-
Wide range for input voltage: 415V±15%
-
Digital meter to preset and display welding current
-
Dust-Free Cooling System with Upgraded Duty Cycle
-
ARC force and Hot start adjustable, easy to striking the arc
-
VRD function, for safety of welders
-
Auto-Protection against over-voltage, over-current and over- heat
-
In this series, each machine is fitted with 8 pcs plastic corner protectors, which can well protect the machine and make it looks more elegant
-
Energy Saving - Compared with the traditional machines more efficient
ITEM |
MMA 400G |
MMA 400G |
3P-415±15% |
Frequency (HZ) |
50/60 |
Rated (A) input current |
27.6 |
Rated input power (KVA) |
18.1 |
Output current (A) |
40-400 |
Hot start current (A) |
0-135 |
Arc force current (A) |
0-100 |
Duty cycle (40℃) |
400A@60% |
Power factor |
>0.93 |
Efficiency |
>85% |
Housing protection grade |
IP21 |
Weight (kg) |
22 |
Dimensions (mm) |
485x234x425 |
Control Panel:- Simple and easy to understand front panel design, the upper big knob for welding current pre- setting, the below two smaller knob for hot start current and Arc force current adjustment.
Base Units Include
1 pcs inverter power source
Stick electrode holder with 3 mtr 35 mm2 Copper cable
Earthing clamp with 3 mtr 35 mm 2 Copper cable
Application Specification:- Steel erection, Pipe, Fabrication, Shipbuilding, Foundries, Mild steel, Stainless steel, alloyed steel, fabrication etc.
