Description

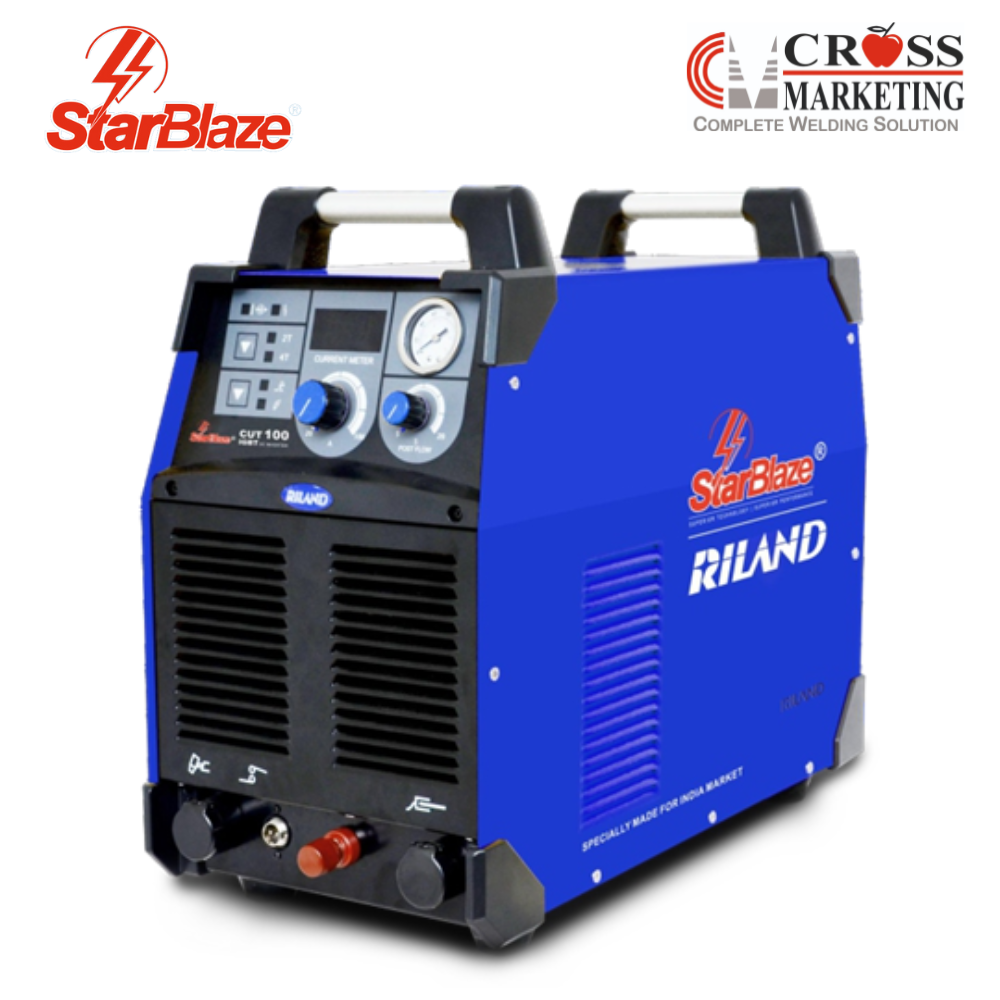

CUT 100 Plasma Cutting Machine Focused, Heavy, Industrial, Professional Excellent, Professional.
Salient features
© Advanced IGBT inverter technology.
© Current and gas post time adjustable, enrich controlling ways of welding shape.
© Compressed air pressure display on the panel.
© Standard signal output socket for CNC on the back panel.
© Generator friendly.
Technical Data
|
ITEM |
CUT 100 |
|
CUT 100 |
3P-415±15% |
|
Frequency (HZ) |
50/60 |
|
Rated (A) input current |
21.0 |
|
Rated input power (KVA) |
15.0 |
|
Output current (A) |
20-100 |
|
Welding output voltage(V) |
328 |
|
Insulation class |
H |
|
Power factor |
>0.93 |
|
Efficiency |
>85% |
|
Housing protection grade |
IP21 |
|
Weight (kg) |
25.6 |
|
Dimensions (mm) |
526 x 272 x 468 |
Control Panel
Simple and easy to operate, one rotary knob for plasma cutting current pre-set.
Customers can easily choose the cutting current, 2T/4T, post gas time and current compressed air pressure.
Application Specification
Recommended for 1-30mm thickness metal, limited for 40mm thickness metal. Suitable for Steel erection, Pipe, Fabrication, Shipbuilding, Foundries, Mild steel, Stainless steel, alloyed steel, etc.
Base Units Include
© 1 PCS Inverter power source without input cord.
© 1 PCS P80 Cutting torch.
© 1 PCS Earth clamp with cable and plug.
© 1 PCS Gas hose.
