Description

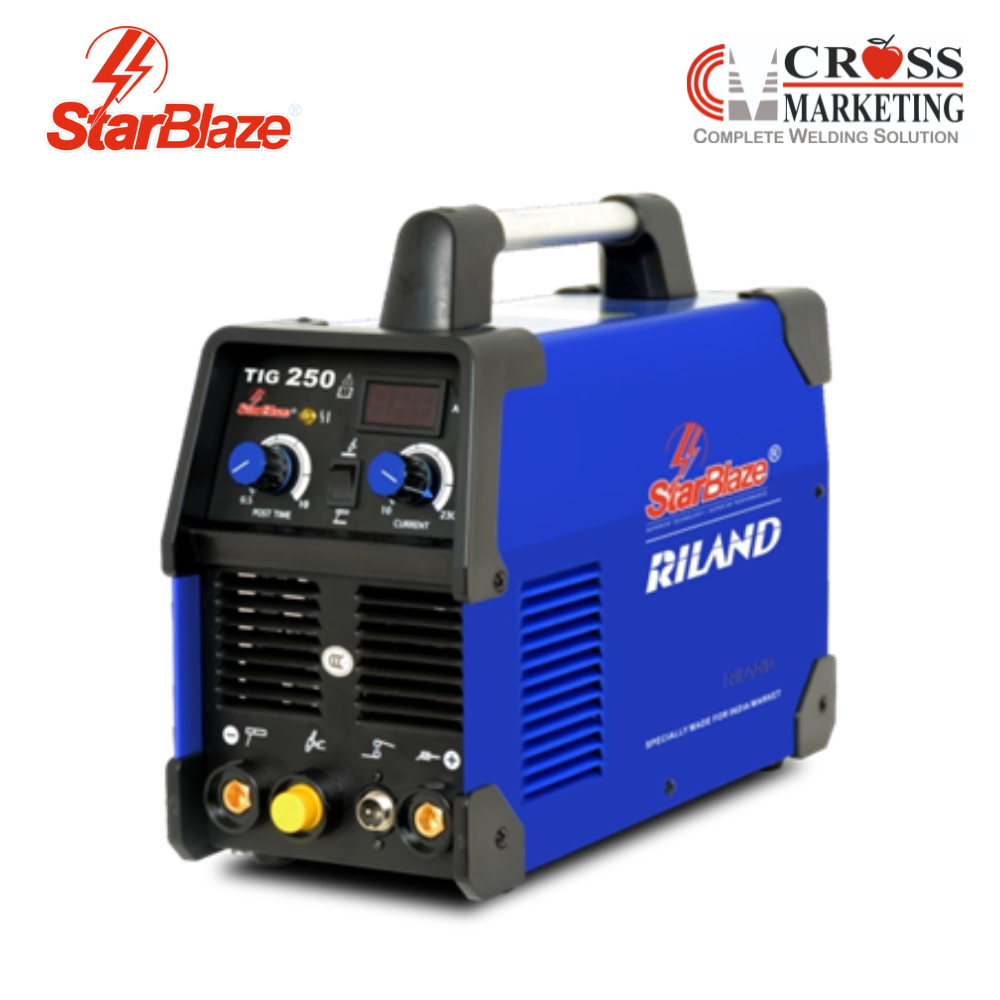

The high cost-performance,TIG 250
Excellent, Precise, Professional, Reliable and Rugged
-
Use 100 KHz inverter MOSFET technology.
-
With plastic corner, sloping front panel.
-
Adopt new techniques that maximizing thermal dissipation with 4 separated heat sinks.
-
Dual functions : HF TIG and MMA.
-
LED display, shows the preset current.
-
Auto-Adaptive arc force and hot start current under MMA function.
-
Post flow adjustable (0.5~10s); make the welding seam protection more effective.
-
Pass the high voltage 3750V AC dielectric strength test, safe for welders.
ITEM |
TIG 250 |
|
TIG 250 |
1P-220±15% |
|
Frequency (HZ) |
50/60 |
|
Rated (A) input current |
35.5(TIG) |
38.5(MMA) |
Rated input power (KVA) |
7.81 |
8.47 |
Output current (A) |
10-250 |
10-250 |
No-load Voltage (V) |
64 |
64 |
Insulation grade |
F |
|
Efficiency |
>85% |
|
Housing protection grade |
IP21S |
|
Weight (kg) |
7.5 |
|
Dimensions (mm) |
402 x 160 x 300 |
Control Panel
Simple and easy to operate, one rotary knob for welding current pre-set, another knob for post gas adjusting. Customers can easily choose the welding current, according to the display panel printing.
Application Specification
Light steel structure, Machinery maintenance, Sheet metal Processing, Pressure container, Pipe installation, Mild steel, Stainless steel, alloyed steel, etc.
Standard package includes
© 1 PC inverter power source.
© 1 PC TIG 26 torch.
© 1 PC Earth clamp, cable with Europlug.
