Description

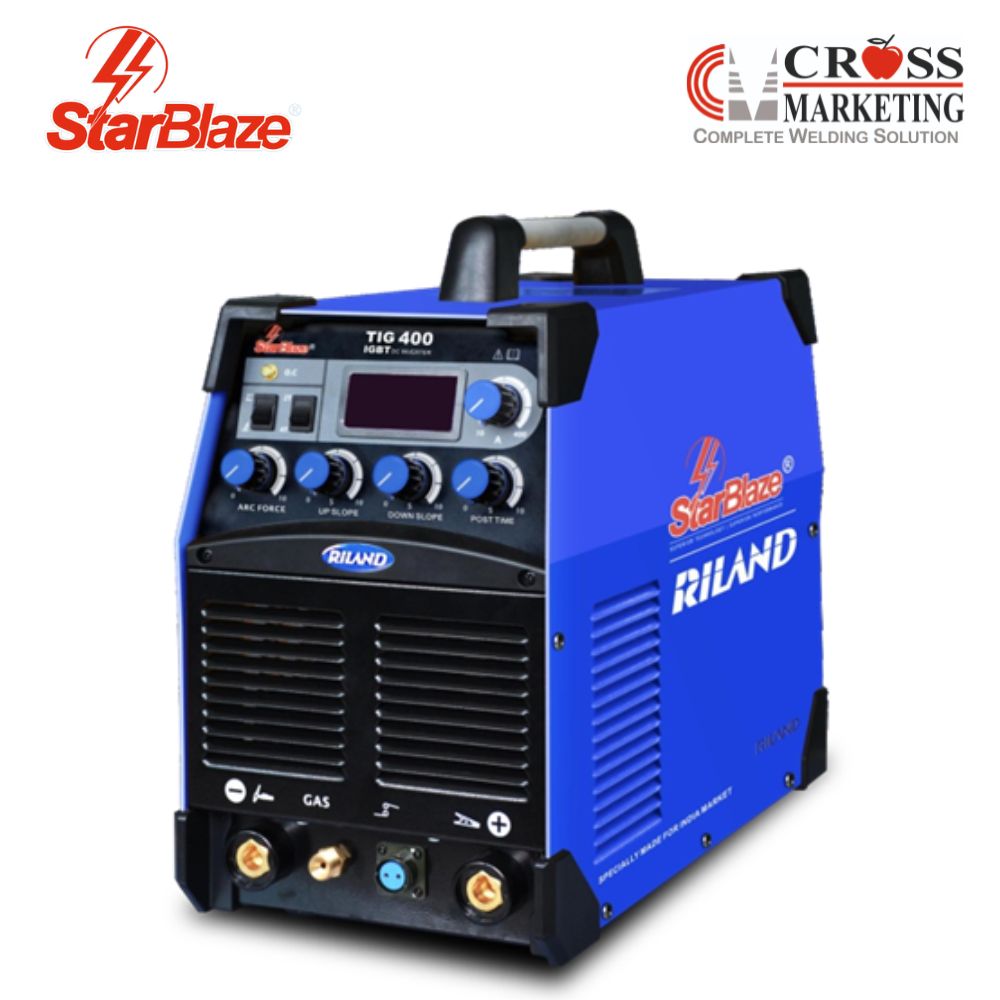

The high cost-performance,TIG 400 Excellent, Professional, Reliable, Rugged, Basic Industrial TIG Welding
-
Advanced IGBT inverter technology delivers superior
-
2T/4T function selectable, convenient for welders.
-
Experience seamless arc starting with high frequency technology ensuring easy arc ignitions and consistent performances across diverse welding conditions.
-
Dual functions : HF TIG and MMA.
-
LED display, shows the preset current.
-
Arc force, up slope and down slope function adjustable.
-
Pass the high voltage 3750V AC dielectric strength test, safe for welder.
|
ITEM |
TIG 400 |
|
|
TIG 400 |
3P-415±15% |
|
|
Frequency (Hz) |
50/60 |
|
|
Rated (A) input current |
20.0 (TIG) |
24.3 (MMA) |
|
Rated input power (KVA) |
14.38 |
17.50 |
|
Output current (A) |
10-400 |
10-400 |
|
Output voltage range (V) |
10.4-26 |
20.4-36 |
|
No-load voltage (V) |
65 |
|
|
No-load loss （W） |
100 |
|
|
Power factor |
0.9 |
|
|
Insulation grade |
F |
|
|
Efficiency |
>85% |
|
|
Housing protection grade |
IP21 |
|
|
Weight (kg) |
25 |
|
|
Dimensions (mm) |
508 × 244 × 423 |
|
Application Specification
Light steel structure, Machinery maintenance, Sheet metal Processing, Pressure container, Pipe installation, Mild steel, Stainless steel, alloyed steel, etc
Standard package includes
© 1 PC inverter power source
© 1 PC Water cooled TIG torch
© 1 PC Earth clamp, cable with Europlug
Control Panel
Simple and easy to operate, one rotary knob for welding current pre- set. Customers can easily choose the welding current, 2T/4T, welding data, according to the display panel printing.
