Description
Salient features
© Protection of under voltage, over voltage and over current, it makes the machine safe and reliable.
© Electronic choke adjustment for better arc control.
© Multi process GMAW, FCAW, MMAW & Lift TIG.
© Generator friendly.
© Suitable for Gasless welding.
Main Technical Parameters : |

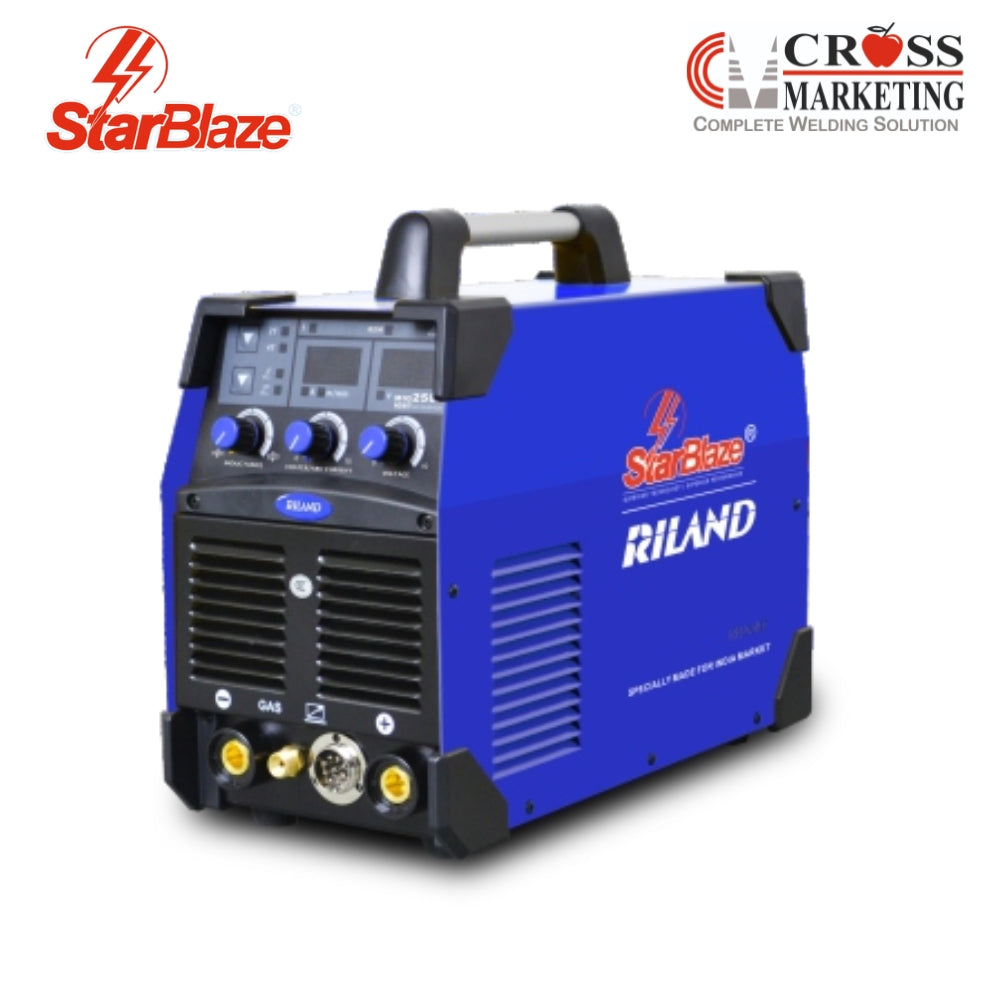

MIG 250F |
MIG 400 |
MIG 500 |
MIG 500 HD |
Rates input Voltage (V) |
415*3P ± 15% |
415*3P ± 15% |
415*3P ± 15% |
415*3P ± 15% |
Frequency (Hz) |
50/60 |
50/60 |
50/60 |
50/60 |
Rated input capacity ((KVA) |
9.2 |
15.2 |
22.8 |
16 |
Rated input current (A) |
12.8 |
21 |
32 |
22.2 |
Welding output voltage (V) |
61 |
66 |
61 |
76 |
No load loss (W) |
120 |
120 |
190 |
120 |
Current adjusting range (A) |
40-250 |
60-400 |
60-500 |
62-500 |
Voltage adjusting range (V) |
16-27 |
17-34 |
17-39 |
17-39 |
Efficiency (%) |
85% |
85% |
85% |
85% |
Insulation |
F |
H |
F |
H |
Case protection degree |
IP21 |
IP21 |
Ip21 |
IP21S |
Overall dimensions (mm) |
466 x 212 x 371 |
508 x 244 x 423 |
526 x 272 x 468 |
550 x 280 x 545 |
Weight (kg) |
16 |
24 |
30 |
36 |
