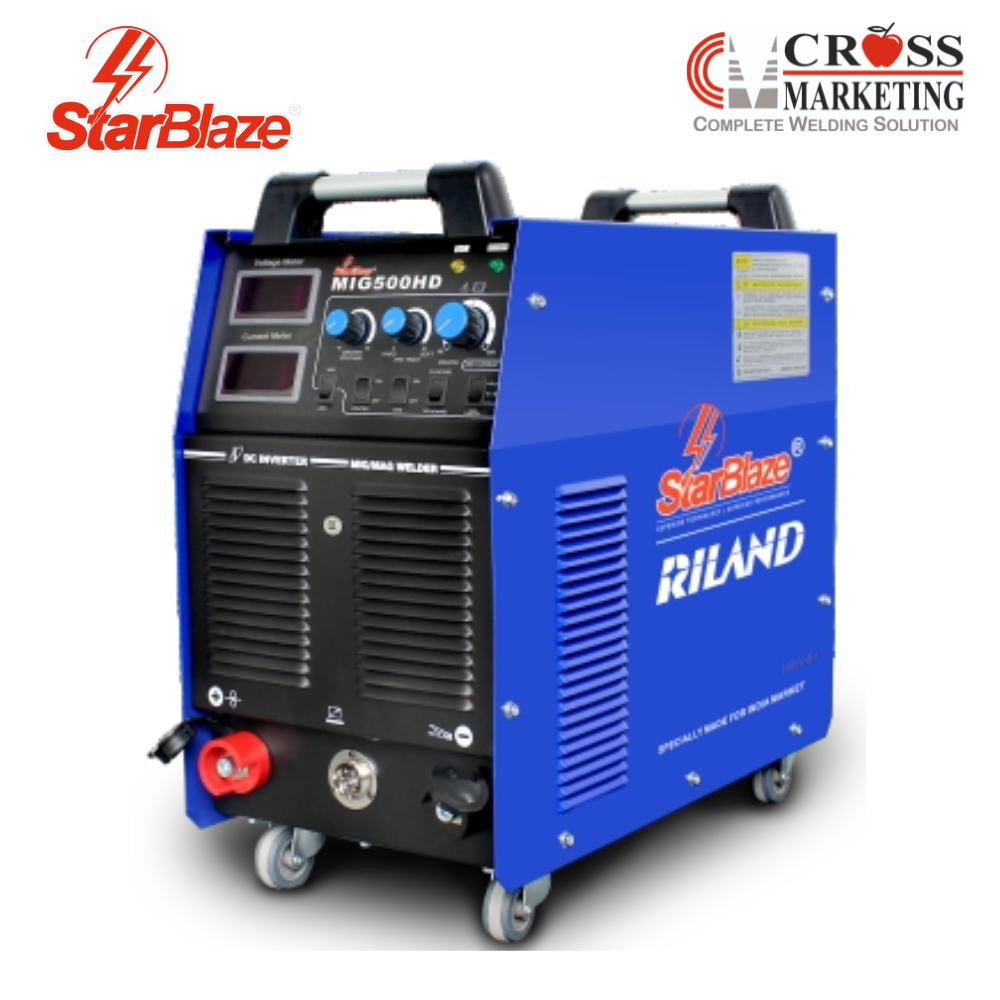

Riland StarBlaze; MIG Welding Machines; MIG 500HD


Description

Salient features

© Protection of under voltage, over voltage and over current, it makes the machine safe      and reliable.

© Electronic choke adjustment for better arc control.

© Multi process GMAW, FCAW, MMAW & Lift TIG.

© Generator friendly.

© Suitable for Gasless welding.

Main Technical Parameters :

MIG 250F

MIG 400

MIG 500

MIG 500 HD

Rates input Voltage (V)

415*3P ± 15%

415*3P ± 15%

415*3P ± 15%

415*3P ± 15%

Frequency (Hz)

50/60

50/60

50/60

50/60

Rated input capacity ((KVA)

9.2

15.2

22.8

16

Rated input current (A)

12.8

21

32

22.2

Welding output voltage (V)

61

66

61

76

No load loss (W)

120

120

190

120

Current adjusting range (A)

40-250

60-400

60-500

62-500

Voltage adjusting range (V)

16-27

17-34

17-39

17-39

Efficiency (%)

85%

85%

85%

85%

Insulation

F

H

F

H

Case protection degree

IP21

IP21

Ip21

IP21S

Overall dimensions (mm)

466 x 212 x 371

508 x 244 x 423

526 x 272 x 468

550 x 280 x 545

Weight (kg)

16

24

30

36
